With today’s ever evolving design ideas and concepts comes the need to push the boundaries, at New Age Veneers our range of substrates can easily accommodate the need for curved applications in residential and commercial projects.

The following list shows our range available for curved application with recommend curved radius.

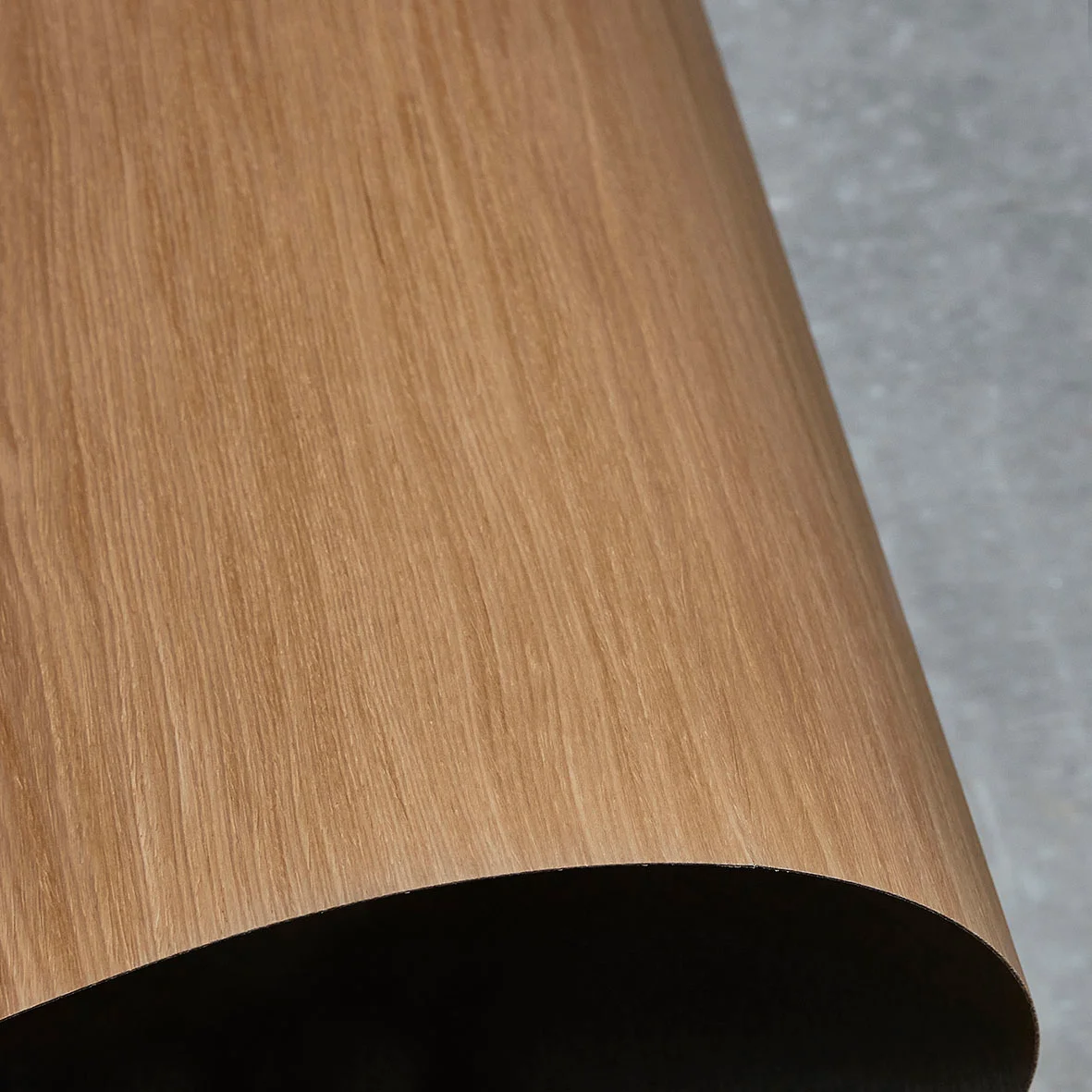

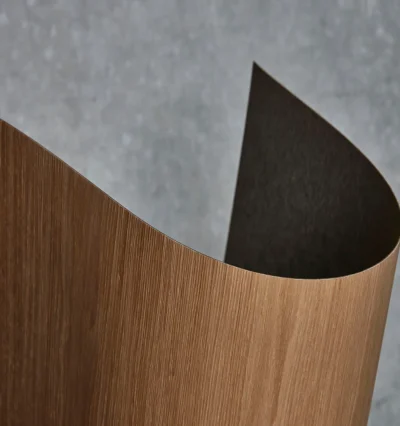

Navurban Flex – Pencil round to 90 degree return is possible.

Available in all Navurban, Navurban Diamond, Navurban Elements & Navurban Earth finishes. PP film with a wallpaper liner backing.

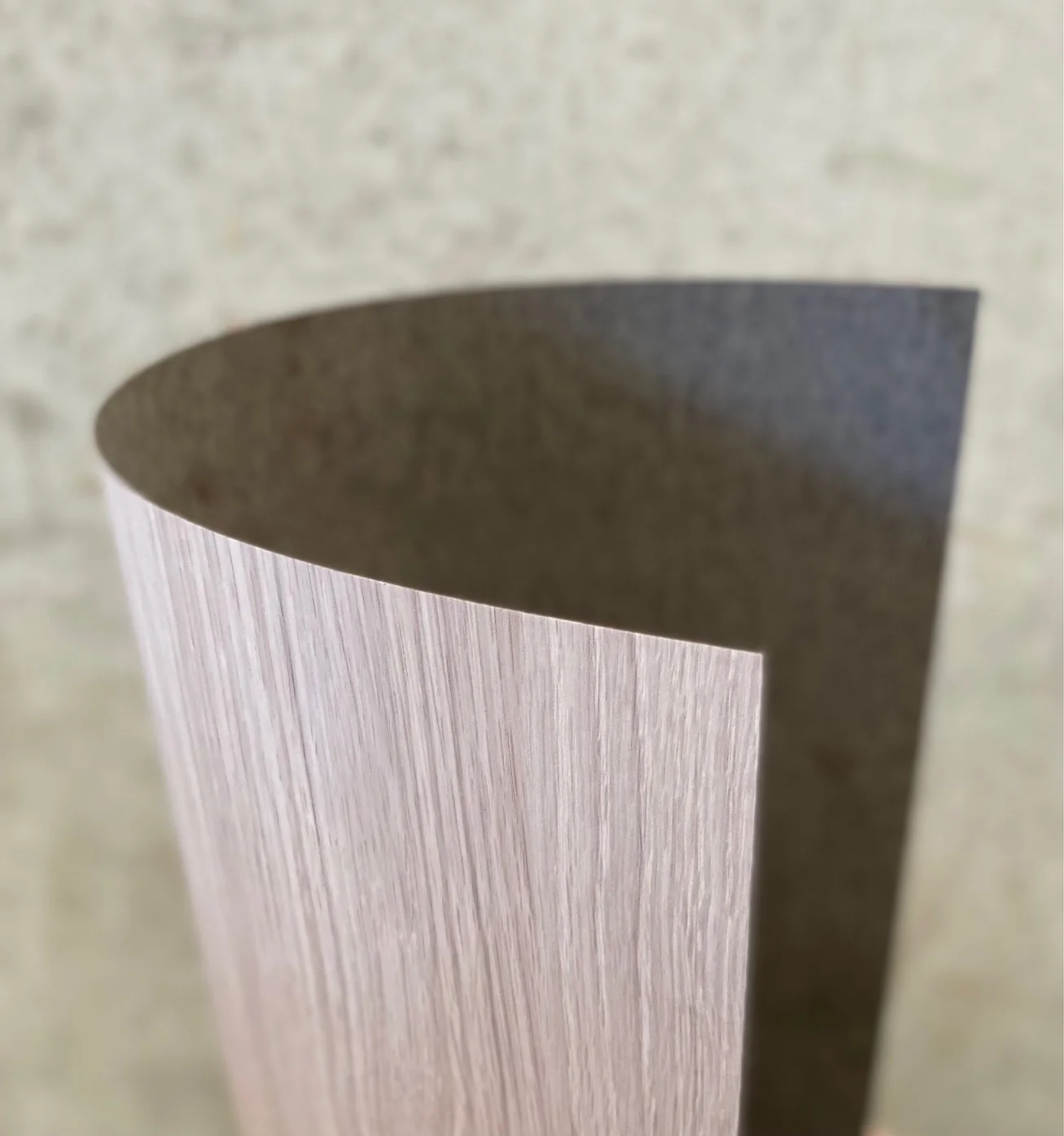

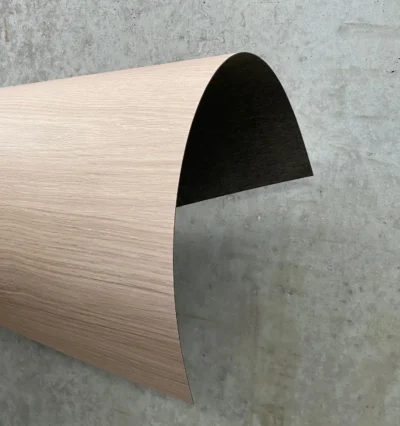

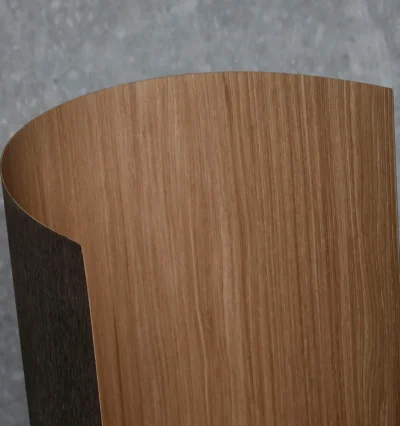

Paperback Veneer Layon – 120-150mm radius

Layon from our Naveneer or Naveneer Naturals is applied to a thin paperbacking to increase strength in the timber for the bend application.

Raw Veneer Layon – 150-180mm radius

The loose layon from our Naveneer & Naveneer Naturals Range can be used for curved applications. However this radius can vary depending on the veneer itself based on species, structure and thickness. We recommend a paperback option on the layon for strength for the curved application.

1.8mm MDF (Kerf Sawed) – Varied radius depending on depth and distance between cuts.

For example – 40mm radius is achievable with a groove depth of 1mm and 3mm spacing between cuts.

All ranges can be applied to this substrate.

Sheet size only available in 3000 x 1200 MDF

1.8mm MDF – 250mm radius

All ranges can be applied to this substrate.

Sheet size only available in 3000 x 1200 MDF

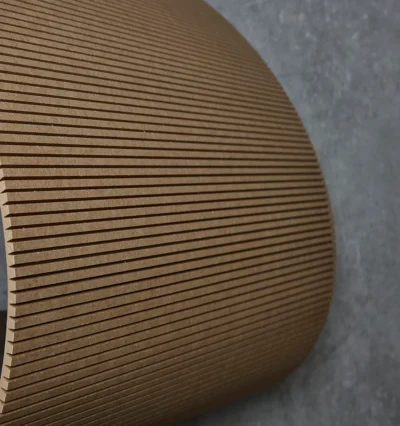

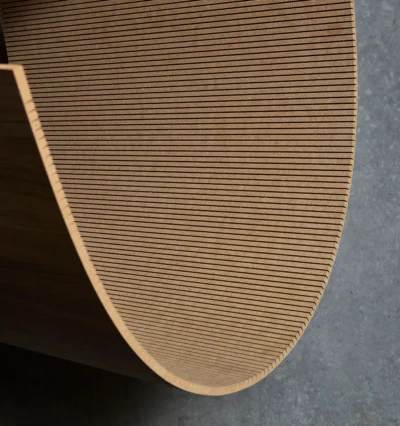

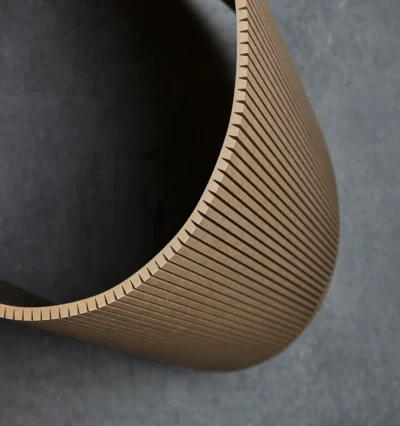

Craftform – 250mm radius

All product ranges can be applied to craft form.
2400 x 1200 x 9mm MR MDF

This substrate can only be supplied G1S face due to the kerfed back which allows the substrate to bend either short or long.

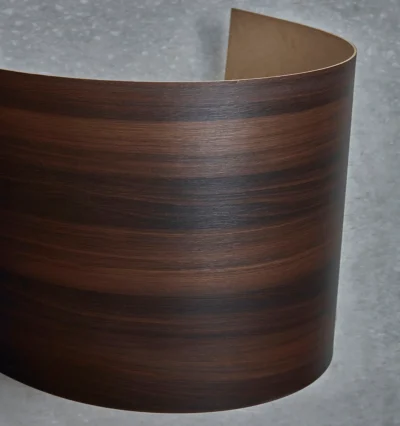

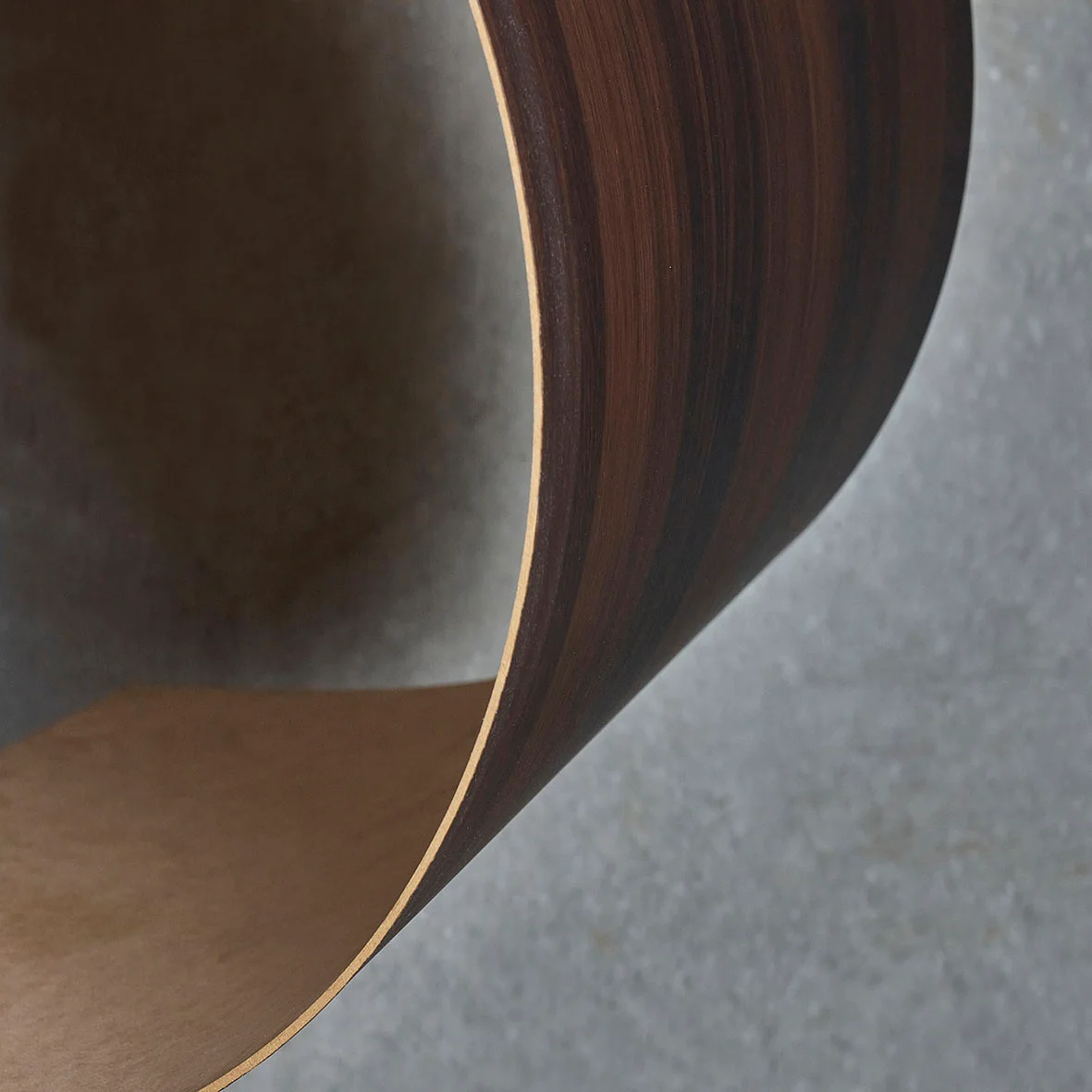

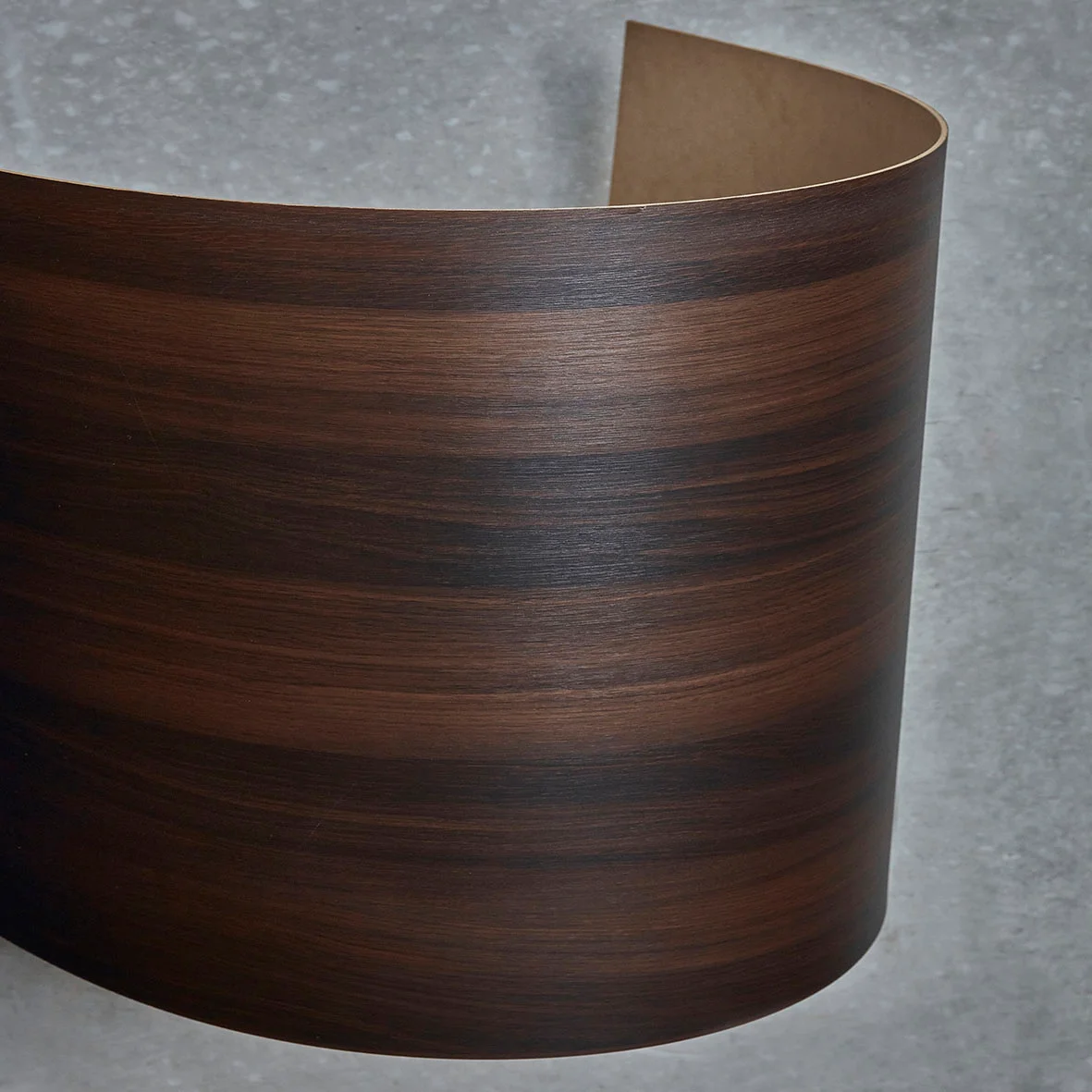

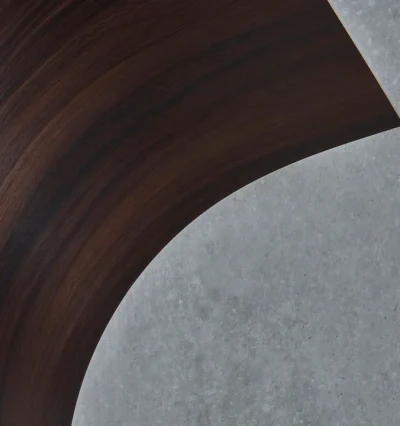

3mm MDF – 300mm radius

All ranges can be applied to this substrate.

Sheet size 2400 x 1200, 3600 x 1200 MDF
